Buratherm T 9544/T

Buratherm T 9544/T
Request product

Buratherm T 9544/T

Features

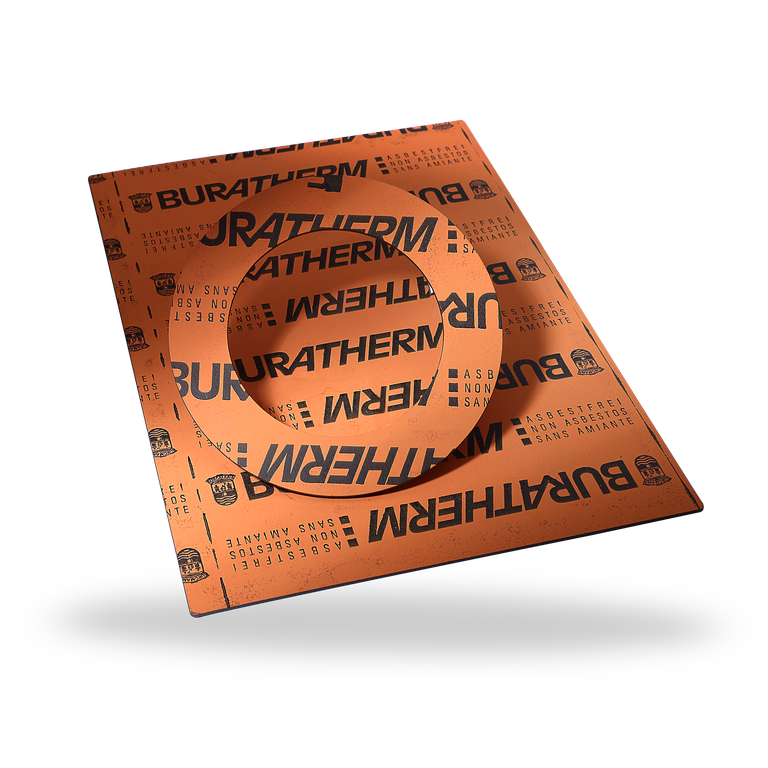

Buratherm T 9544/T is a gasket sheet made from graphite and high-grade aramid fibers with a special anti-stick surface coating.

Advantages

  • The most highly adaptable of all the fiber gaskets due to its low density
  • Easy handling
  • Easy to process

Operating range

Pressure: p = 150 bar
Temperatur
  • Continuous operation:
    t = -100 °C ... +350 °C
  • Transient peak temperature:
    t = +380 °C
  • Steam: tmax = +360 °C
Recommended surface roughness:
RZ = 20 - 60 µm

Resistant to oils, water, steam, weak acid and lyes. Particularly suitable for steam applications.

Variants

9544/TP (sheets)
9544/TR (rings and cuts)
9544/TS (segments)

Forms of supply

  • Sheets:
    2.000 x 1.500 mm
    0.5 / 1.0 / 1.5 / 2.0 / 3.0 mm thick
  • Rings and molded parts:
    Standard dimensions as per DIN EN 1514-1 or ASME B16.21
